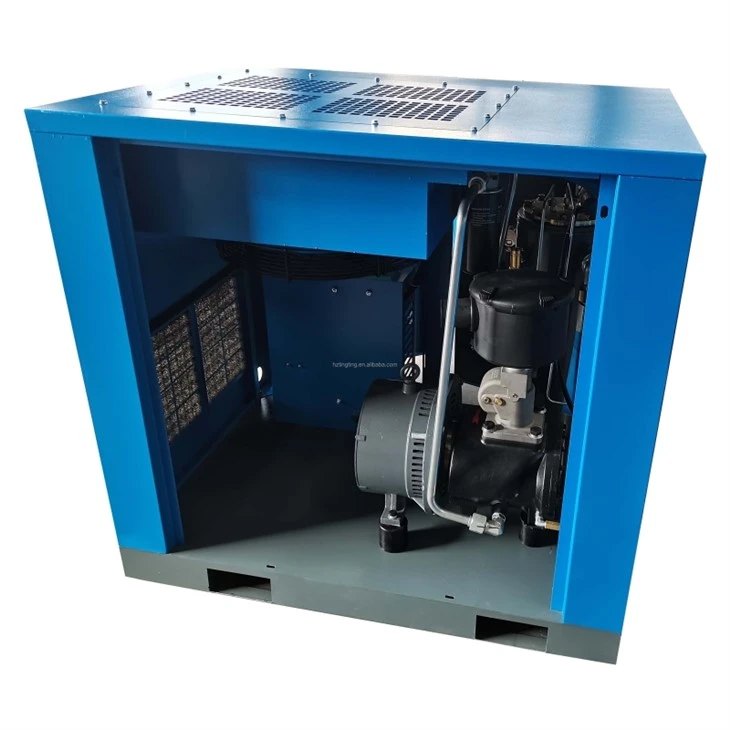

TingTing Woodworking Machinery Co., Ltd. is one of the leading manufacturers and suppliers of woodworking air compressor in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy premium woodworking air compressor from our factory. For price consultation, contact us.
Feature
Powerful Performance: Delivers 22kw/30HP output for robust industrial tasks.
Soft Start Technology: Ensures smooth operation and extends machine life.
Compact Design: Measuring 1200 x 880 x 1125 mm, easy to transport and install.
High Efficiency: Operates at 8 bar pressure for optimal air compression.
Durable Construction: Built with 360 kg weight, providing stability and longevity.
Parameters
|
Model |
TT-30PM |
|
type |
Rotary |
|
power source |
AC Power |
|
lubrication style |
Lubricated |
|
Cooling Method |
Air Cooling |
|
configuration |
Stationary |
|
Air Compressor Air End |
double screw |
|
environment temperature |
-5℃~45℃ |
|
Out pipe diameter |
G 11/4" |
|
voltage |
220V/380V/415V |
|
core components |
PLC, Pressure Vessel, Other, Engine, Motor, Pump, Bearing |
|
Weight |
660kg |
|
dimension(l*w*h) |
1200X880X1130mm |
|
Power |
22KW /30HP |
|
Treatment capacity(m3/min) |
3.56/0.8Mpa |
|
Drive method |
Direct Drive |
Touch control
Color screen, touch operation equip with active protection, alarming, maintenance, reminding and automatic24-hour unattended operation
Oil Filter
The filter fineness is 25umwhich can guarantee the clean lubricating oil supply to the main system and improve the service life of the air end
Permanent Magnet motor
Adapted variable speed drive (vsd) technology closely matches the air demand by automatically adjusting the motor speed and combined with the special design of the integrated PM(permanent magnent )motor this results in average energy saving of 50%
Air End
Oil & Gas separator
Make the oil content less than or equal or to 3ppm
High Performance all-in-one Frequency Converter
Make the operation more stable and carring out real-time vector calculation according to different air delivery
Cooler System
High efficiency and large air volume,greatly lower the temperature,prolong the lubricating oil change period
