TingTing Woodworking Machinery Co., Ltd. is one of the leading manufacturers and suppliers of six sided cnc drilling machine in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy premium six sided cnc drilling machine from our factory. For price consultation, contact us.
Specification
|
Model |
TT-M6 |
|
Max. panel length |
3050mm |
|
Min. panel length |
230mm (150-230mm) |
|
Max. panel width |
900mm |
|
Min. panel width |
40mm |
|
Max. panel thickness |
32mm |
|
Min. panel thickness |
10mm |
|
Max. X axis speed |
80m/min |
|
Max. Y axis speed |
80m/min |
|
Vertical drilling axis |
19 (10Z-9W) QTY |
|
Horizontal drilling axis |
8 (X) & (Y) QTY |
|
Drilling motor power |
2.2(3)*2 Kw(Hp) |
|
Upper spindle speed |
18000rmp |
|
Lower spindle speed |
18000rmp |
|
Consumption of compressed air |
450NI /cycle |
|
Dust abatement air volume |
1900+550 M3/h |
|
Dust abatement air speed |
30m/sec |
|
Total power |
9kw |
|
Diameter of dust removal |
100+80 mm |
|
Weight of machine |
2350kg |
|
Overall dimension |
5800*2250*1720mm |
|
Power |
380V 50HZ |
Configuration Features
Precise upper drill bags
Precise lower drill bags
New pressure beam
Precise electrical cabinet
Pneumatic rubber wheel feeding device
Electroplated mesa
Manual code scanner
High speed discharging platform (optional)
Steel ball air flotation table
Feature

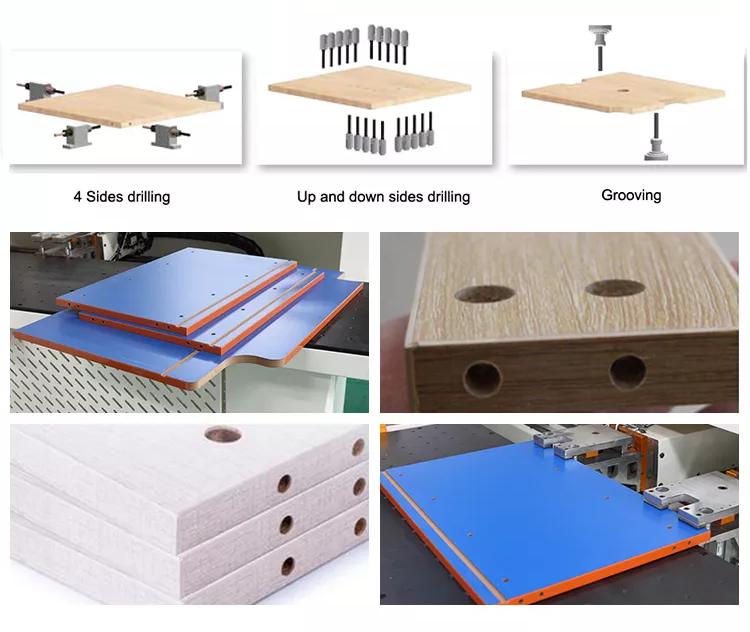

1.Multi-functional CNC drilling machine is able to drill from 6 sides.
2.Six side drilling, no need to turn panel, one-time processing.
3.Simple routing meets different process requests and gives batch-size-one production max flexibility.
4.High-end air-floating table ensures greater stability and improved machining accuracy.
5.Software is open port, support all formats in market.
6.Panel size can be read automatically. Docking order production software, displaying the information of the thickness of the four-sided edges, are convenient for placing panel.
Core Application Areas
1.Modular Furniture: Developing folding/nesting furniture structure, adopting invisible pre-embedded connectors and precise positioning hole technology.
2.Tool-less assembly: Apply screw-less fastening system to build high load-bearing cabinets and realize rapid disassembly and assembly.
3.Shaped Processing: Create artistic furniture such as wavy laminates through 3D curved surface grooving process to ensure millimeter-level assembly precision.
4.Functional integration: develop intelligent headboards with hidden wire slots and ergonomic chair structures.
1.Intelligent wall panels: processing three-dimensional wall decorations with interlocking structures and integrating dynamic light and shadow systems.
2.Acoustic system: development of sound-absorbing wall panel system with pre-embedded fasteners for fast modular installation.
3.Intelligent Windows and Doors: Manufacturing of security door systems with embedded sensors and LED light slots.
4.Illuminated Stairs: Manufacture suspended treads with invisible load-bearing structure and handrails integrated with intelligent light banding system.
1.IOT cabinet: integrated wireless charging module and induction lighting system.
2.Functional countertops: integrated processing of drainage slots and spice compartment storage system.
3.Hidden function: develop electric lifting shelves and invisible garbage disposal system.
