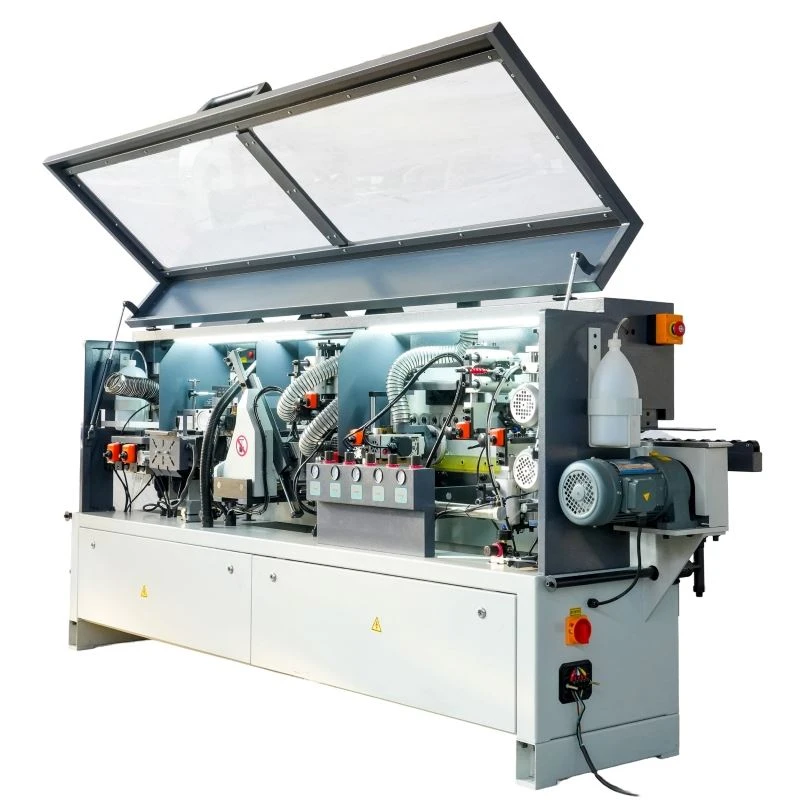

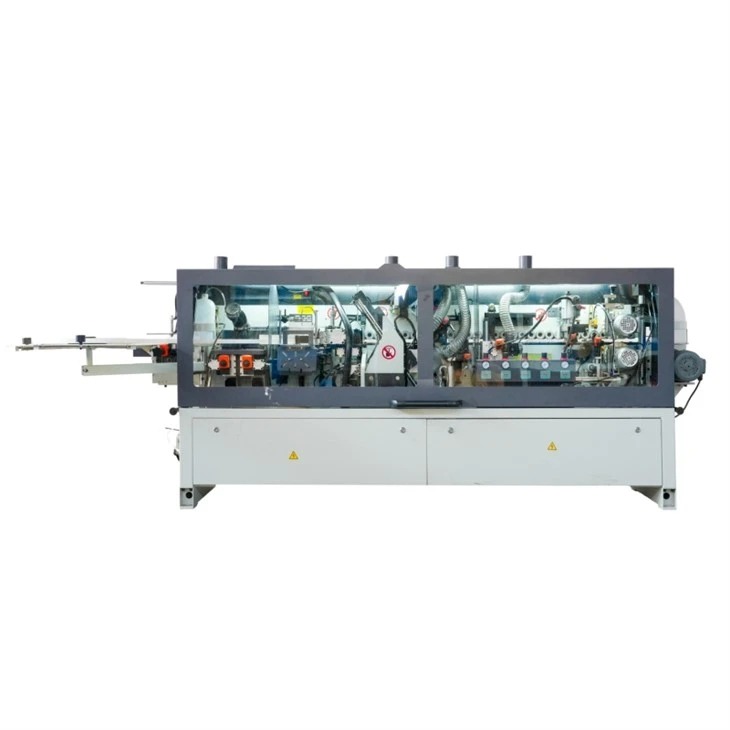

TingTing Woodworking Machinery Co., Ltd. is one of the leading manufacturers and suppliers of automatic edge bander in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy premium automatic edge bander from our factory. For price consultation, contact us.

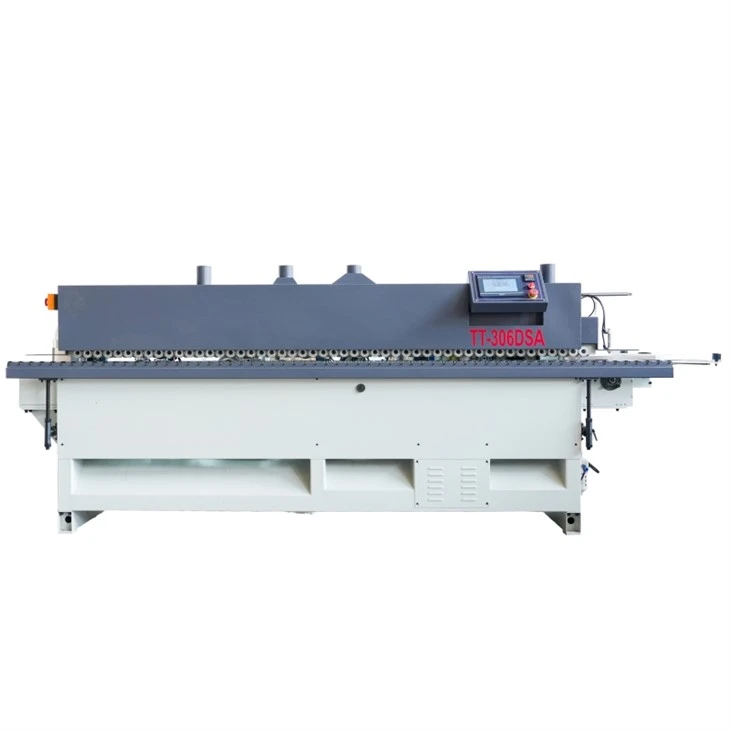

Technical Data
|
Model |
TT-306DSA |
|
Min. panel Length(mm) |
120 |
|
Min. panel Width(mm) |
80 |
|
Panel thickness(mm) |
10-45 |
|
Edge thickness(mm) |
0.4-2 |
|
Feeding speed(m/min) |
8 |
|
Pre-milling motor |
2*1.1kw*12000rpm |
|
End cutting motor |
0.37kw*12000rpm |
|
Fine trimming motor |
2*0.35kw*12000rpm |
|
Corner rounding motor |
0.3kw*12000rpm |
|
Converyor motor |
1.1kw |
|
In-put voltage(V) |
380 ,3phase,50HZ(optional ) |
|
Total power(kw) |
6.8kw |
|
Required air pressure(bar) |
6 bar |
|
Dimension(mm)by wooden |
3220x585x1410 |
|
Weight |
900kg |

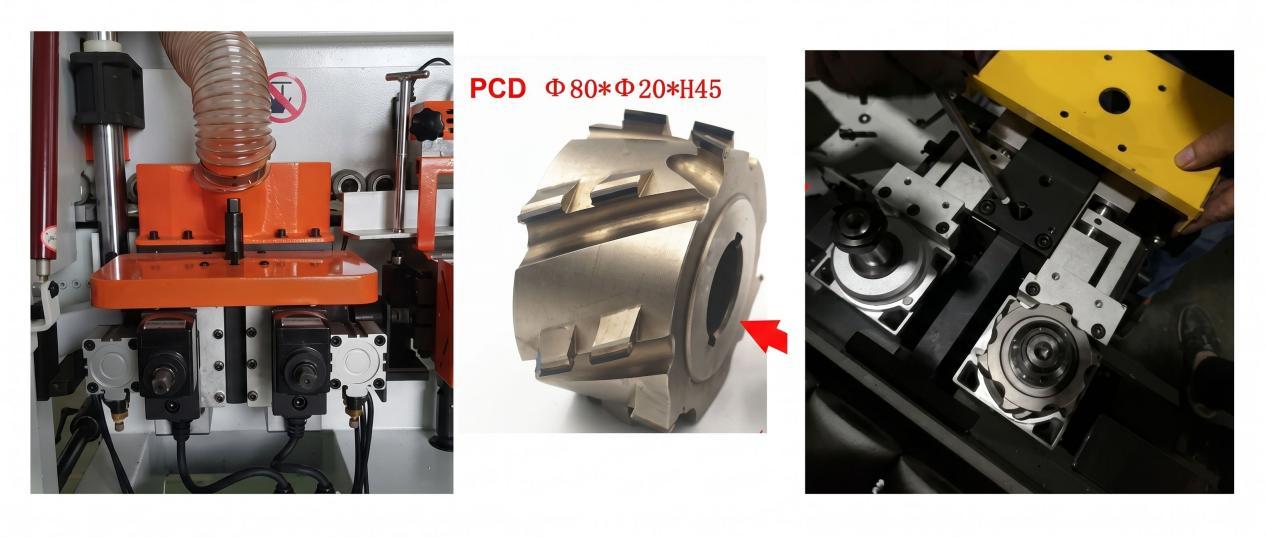

Pre-Milling Unit
Two High speed motors(12000rpm) to ensure a cleaner and smoother surface of the panel, allowing the adhesive to bond more evenly and firmly with the edge banding tape.

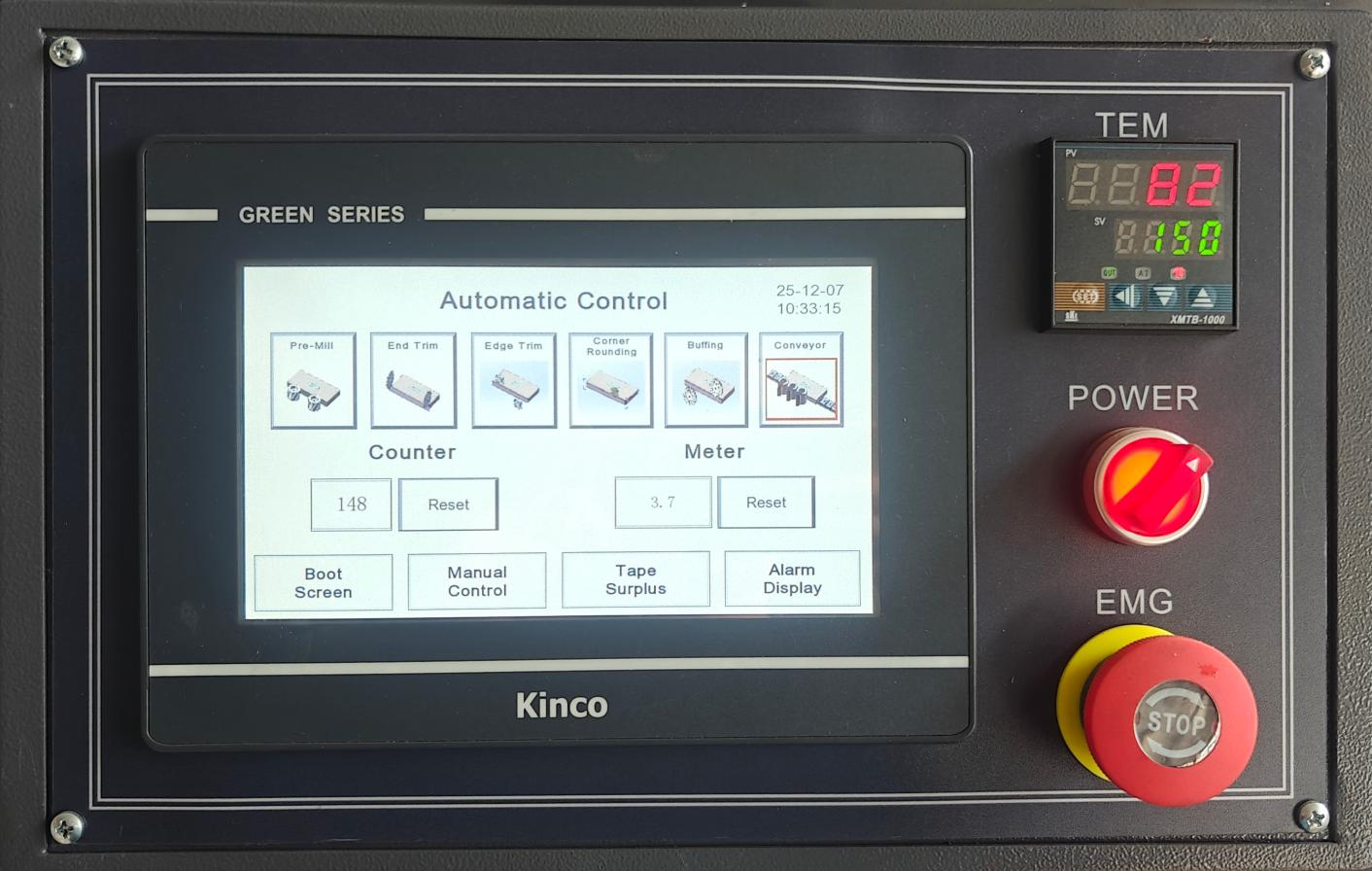

Touch Screen Control panel
The user-friendly touch screen with different languages allows operators to easily manage machine functions, reduce operating errors, and improve overall working performance. And it also makes the machine become easier to operate for both experienced workers and new operators.

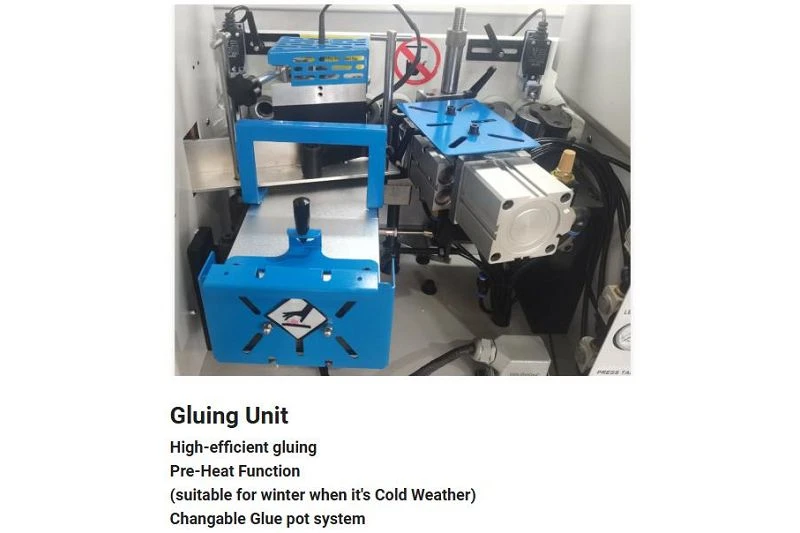

Gluing and Tape Cutting Unit
The easily change design of glue tank is very convenient for cleaning and maintenance. The glue pot and gluing components can be cleaned quickly. Operators can maintain the machine mores efficiently and keep production running smoothly.The design is compact and automatic feeding tape, which is easy adjustment for different thickness of tape, and suit for MDF,wooden board and shaving board etc.

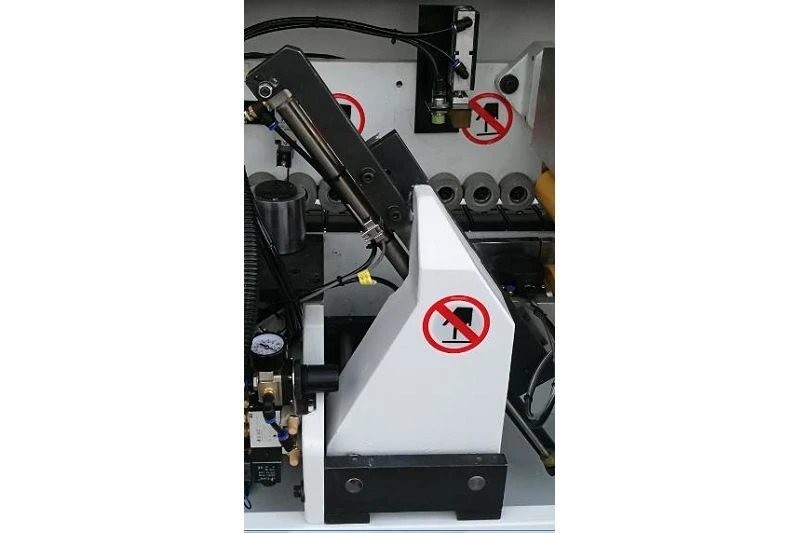

End Trimming Unit
It is equipped with one high speed motor(12000r/min) to achieve fast and accurate cutting without damaging the panel surface or edge material.

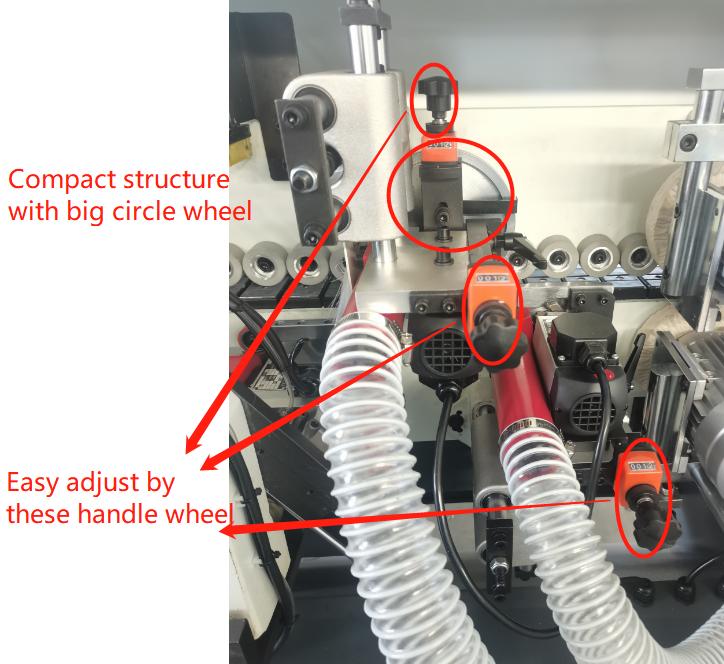

Edge Trimming Unit
There are two high speedmotors(12000r/min) to remove extra edge material accurately, leaving clean and attractive edges without roughness or uneven surfaces. This greatly improves the appearance and value of the finished furniture products.

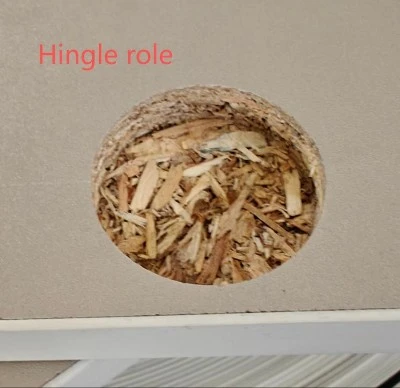

Nesting functions (optional)
Corner Rounding Unit
It is equipped with one high speed motor with Homag Design, which gives furniture a smoother and more professional finish. Rounded corners look more refined than sharp square edges, especially on modern furniture panels.
Scraper and Buffing Unit
Our scraping improves edge smoothness and removes glue residue, while buffing polishes and beautifies the final surface. These functions greatly improve furniture appearance, production efficiency, product consistency, and customer satisfaction.
Package
Wrapped with plastic film, wooden case ,wooden pallet
