TingTing Woodworking Machinery Co., Ltd. is one of the leading manufacturers and suppliers of edge banding machine with pre milling in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy premium edge banding machine with pre milling from our factory. For price consultation, contact us.
Technical Specifications
|

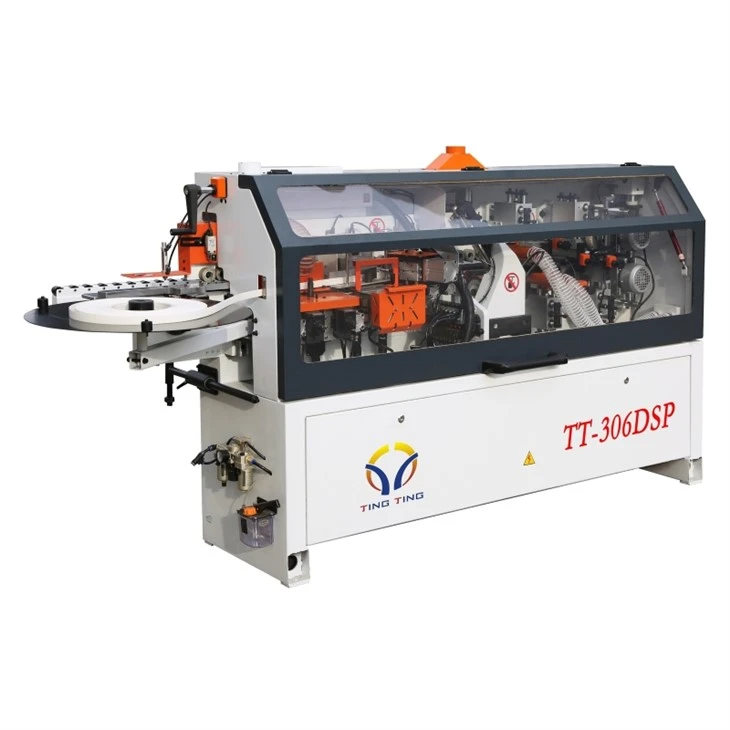

Model |
TT-306DSP |
|
Min.Panel Length |
120mm |
|
Min. Panel Width |
80mm |
|
Panel Thickness |
10-45mm |
|
Edge band Thickness |
0.4-2 mm |
|
Feeding Speed |
8 m/min |
|
In-put voltage |
380V Optional |
|
In-put frequency |
50Hz Optional |
|
Pre-milling motor |
2*1.1kw*12000rpm |
|
End Cutting motor |
0.37kw*12000rpm |
|
Fine Trimming motor |
2*0.35kw*12000rpm |
|
Total Power |
5.86kw |
|
Air Pressure |
0.5 Mpa |
|
Overall Dimension |
2580x585x1410mm |
|
Net Weight |
660kg |

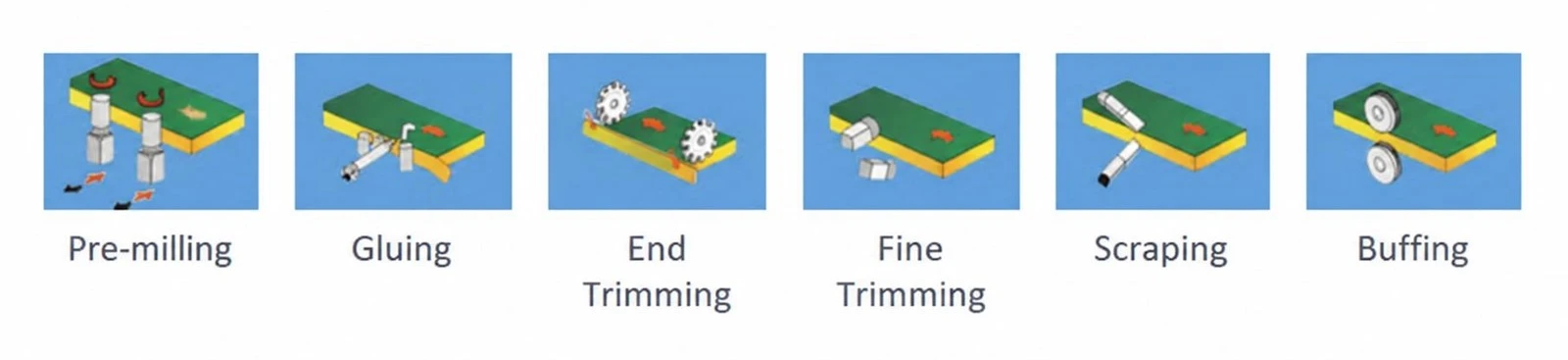

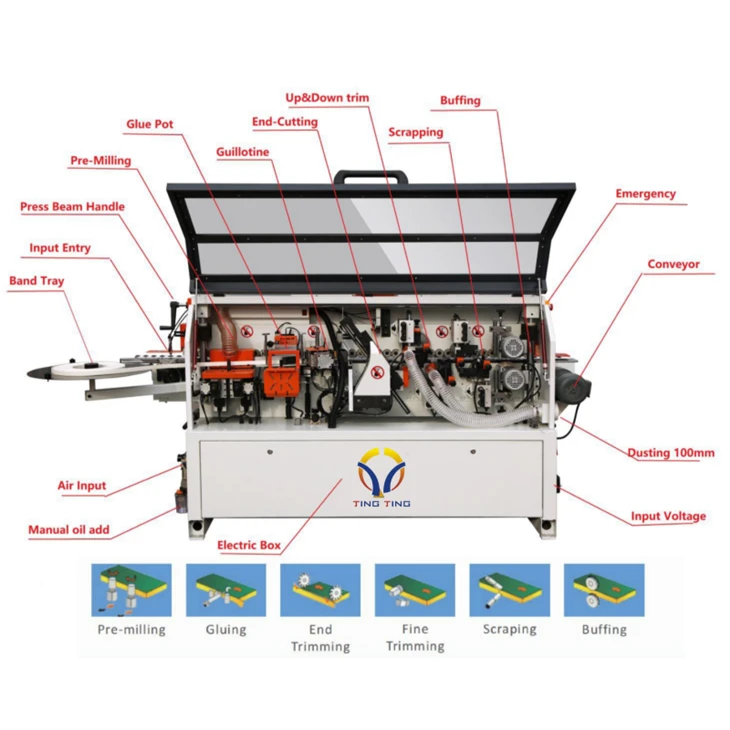

Details
Pre-Milling Unit
Equipped with 12,000 rpm high-speed motor and PCD milling cutter, can produce cleaner board edges.
Entry Unit
The material-limiting cylinder can protect the end-trimming unit,and the wider infeed fence accommodates panels of varying widths.
Control panel
High-definition touchscreen control panel featuring an operating interface specifically designed for edgebanders, ensuring smoother operation.
Easy Operate
Multilingual control panel and allows for language customization.
Gluing and Tape Cutting Unit
- Glue Tank very easy to change
- Special spiral design for glue tank
End Trimming Unit
12,000 rpm high-speed motor,heavy-duty end cutting bottomed base for greater operational stability.
Fine Trimming Unit
- Two high speed motor,12000r/min
- With handle display,easy adjust
- Special design for dust collector
- Nesting functions (optional)
Scraper Unit
- Clear out all the marks on tape surface
- Make your panel side more smooth
- Use Circle Copy Wheel
Buffing Unit&Flat Scrap Unit(Optional)
- Easy adjust structure
- Compact
Cleaning Unit(Optional)
- Can add before Pre-milling
- Or before buffing
Pre-heating (optional)
Gear Motor Reducer
Big machine Standard
Which can easily work 2400*1200mm Big panel
Brand Electrical and Pneumatic Accessories
LS brand PLC Shihlin brand inverter
CE Certification
TT-306DSP has obtained CE certification, demonstrating that the machine complies with European safety, health, and environmental protection standards. This certification reflects our commitment to product quality, operational safety, and international manufacturing standards.
Package
Each of our machines undergoes rigorous testing and professional packaging before shipment to ensure safe transport. We typically use sturdy wooden crates or reinforced steel frames to guarantee the machines are fully protected during sea and land transport. We also support various customized packaging solutions and container loading optimization services to meet your different needs.
TingTing Advantages
All of our sales people are not only fluent in English but have also undergone over one year of rigorous technical training. This ensures that they can communicate with you easy and can resolve many after-sales issues much more quickly and directly. Unlike other sales people at other companies, who must relay your inquiries to engineers and wait for a response before conveying the solution back to you. Ultimately, this saves you valuable time and ensures that your machinery operates smoothly and efficiently.
Why Choose TT-306DSP
TT-306DSP is engineered for manufacturers who require consistent edge quality, operational reliability, and efficient production capacity. Its advanced configuration and user-friendly design make it an ideal choice for growing furniture factories and professional woodworking operations.
If you are looking for a durable and efficient edge banding machine with pre milling for your factory, TT-306DSP offers an excellent balance of performance, automation, and value.
