TingTing Woodworking Machinery Co., Ltd. is one of the leading manufacturers and suppliers of pvc edge banding machine in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy premium pvc edge banding machine from our factory. For price consultation, contact us.
Features
- Economical and compact model that saves space, offers simple operation, and reduces costs.
- Automatic up-and-down adjustment for different board thicknesses.
- Three speed options available for flexible operation.
- Multiple language options including Italian, English, Russian, and more.
- Conveyor automatically stops when the panel exceeds the specified thickness.
- Automatic standby mode with one-button wake-up for energy saving.
- Equipped with high-quality electrical components from globally recognized brands.
Technical Data
|
MODEL |
TT-308DS |
|
Panel Length |
≥100 mm |
|
Panel width |
≥45 mm |
|
Panel Thickness |
10-45 mm |
|
Edge Thickness |
0.3-2 mm(if 3mm,need custom cutters) |
|
Speed |
8,12 ,16m/min |
|
Voltage |
380V,50HZ,3Phase(Optional) |
|
Power |
5.5kw |
|
Pneumatic Power |
5 bar |
|
Machine Size |
3100x780x1420mm |
|
Packing Size |
2850*580*1420mm |
|
Gross Weight(Wooden case) |
750 /810KG |
Details
Touch Screen Controller
Delta Touch Screen

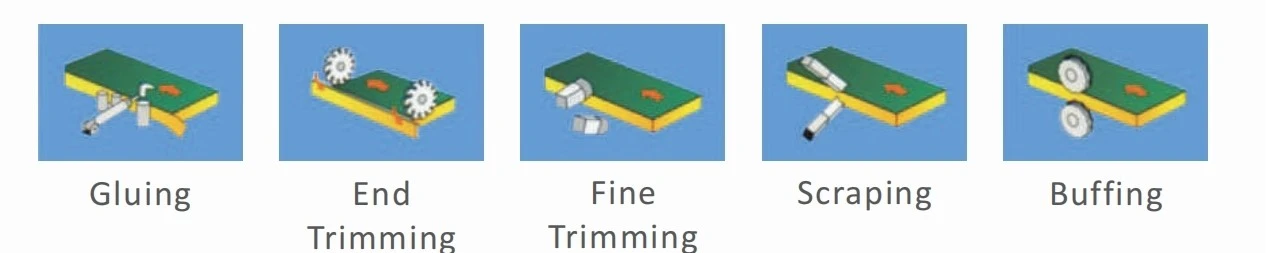

Gluing Unit
- High-efficient gluing
- Pre-Heat Function (suitable for winter when it's Cold Weather)
End Trimming Unit
- Two Cylinder
- Two High Speed motor
- 0.35kw*2 12000Rpm/200HZ
- Three Spreed:8,12,16m/min
- Great effect
Fine Trimming Unit
- Two High Speed Motors
- Use Tilt Motor Design
- 0.5kw*2 12000rpm/200HZ
- Use big Dust hose (more easy to collect dust)
- Higher precision
Scraping Unit
- Clear out all the marks on tape surface
- Make your panel side more smooth
- Use Circle Copy Wheel
Buffing Unit
Easy to adjust, Easy to change Buffing Wheel
Press Beam
Up&Down automatic
Cleaning Unit(Optional)
Can add before Pre-milling Or before Scrapping
Electrical accessories
- Use LS(KROEA) PLC, Inverter, Contactor
Other Details pictures
1:Protect Cylinder
2:Manual add Oil
3:Pre-heat for board
Warranty
For Touch Screen&Inverter&PLC Two years Warranty
Motor:One year Warranty
CE Certification
TT-308DS has obtained CE certification, confirming its compliance with European safety, health, and environmental protection standards. This certification underscores our commitment to delivering high-quality products that meet strict operational safety and international manufacturing requirements.
Package
Wrapped with plastic film, wooden case ,wooden pallet Optional
Why Choose TT-308DS
TT-308DS is renowned worldwide for its stable quality and strong sales performance. It is engineered for manufacturers who demand consistent edge quality, operational reliability, and high production efficiency. With its advanced features and user-friendly design, it is an ideal choice for expanding furniture factories and professional woodworking operations.
If you are seeking a durable and efficient PVC edge banding machine for your factory, the TT-308DS provides an excellent balance of performance, automation, and value.
