TingTing Woodworking Machinery Co., Ltd. is one of the leading manufacturers and suppliers of auto edge banding machine in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy premium auto edge banding machine from our factory. For price consultation, contact us.
Features
- Economical compact model, save space, simple operation, and save money!
- Automatic Up&Down when use different Thick board
- Have Three Speed can choice
- Italian,English,Russian and more language can be choice
- The conveyor stops when the panel exceeds the specified thickness;
- Automatic standby, one-button wake-up device and energy saving;
- Use famous electric components are in world famous brand.
Technical Data
|
MODEL |
TT-308R |
|
Panel Length |
≥100 mm |
|
Panel width |
≥45 mm |
|
Panel Thickness |
10-45 mm |
|
Edge Thickness |
0.3-2 mm(if 3mm,need custom cutters) |
|
Speed |
8,12 ,16m/min |
|
Voltage |
380V,50HZ,3Phase(Optional) |
|
Power |
6.3kw |
|
Pneumatic Power |
6 bar |
|
Machine Size |
3550x780x1420mm |
|
Packing Size |
3480*575*1520mm |
|
Gross Weight(Wooden case) |
920/860KG |
Details
Touch Screen Controller
Delta Touch Screen
Gluing Unit
- High-efficient gluing
- Pre-Heat Function (suitable for winter when it's Cold Weather)
End Trimming Unit
- Two Cylinder
- Two High Speed motor
- 0.35kw*2 12000Rpm/200HZ
- Three Spreed:8,12,16m/min
- Great effect

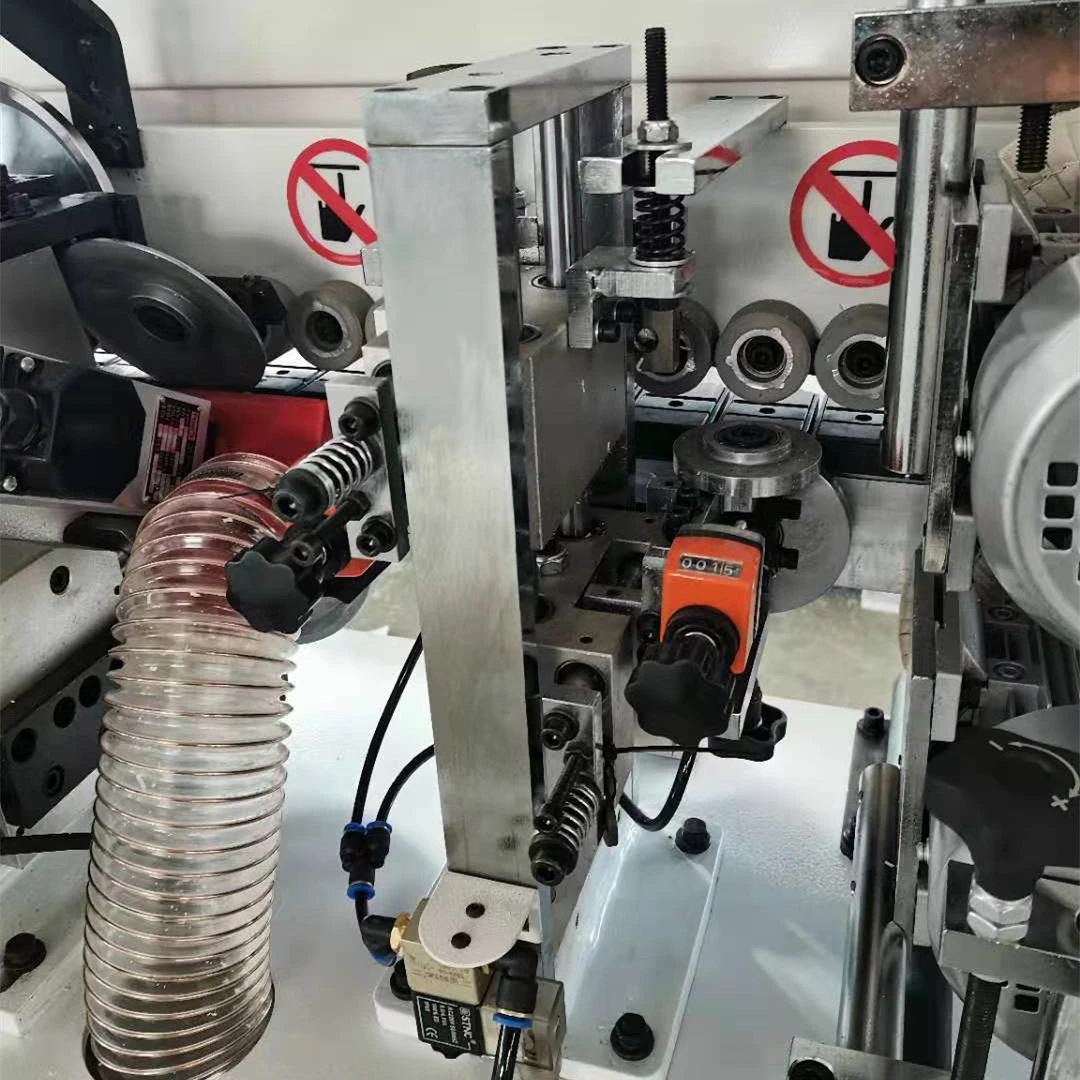

Fine Trimming Unit
- Two High Speed Motors
- Use Tilt Motor Design
- 0.5kw*2 12000rpm/200HZ
- Use big Dust hose (more easy to collect dust)
- Higher precision
Corner Rounding Unit
- One High Speed Motor
- Homag Design
Scraping Unit
- Clear out all the marks on tape surface
- Make your panel side more smooth
- Use Circle Copy Wheel
Buffing Unit
Easy to adjust, Easy to change Buffing Wheel
Press Beam
Up&Down automatic
Cleaning Unit(Optional)
Can add before Pre-milling Or before Scrapping
Electrical accessories
- Use LS(KROEA) PLC,Inverter,Contactor
Other Details pictures
1:Protect Cylinder
2:Manual add Oil
3:Pre-heat for board
Warranty
For Touch Screen&Inverter&PLC Two years Warranty
Motor: One year Warranty
Package
Wrapped with plastic film, wooden case ,wooden pallet Optional
Why Choose TT-308DSR
TT-308 series auto edge banding machine is designed for furniture manufacturers looking to improve finishing quality while maintaining efficient and stable daily production. With its practical configuration and reliable performance, the machine provides an ideal solution for factories upgrading from entry-level edge banding equipment.Its compact yet robust structure allows easy integration into different workshop layouts, while the optimized mechanical design reduces maintenance requirements and supports long-term continuous production.
In addition, the machine is built with carefully selected electrical and mechanical components to ensure dependable operation and lower production downtime. Supported by CE certification and professional after-sales service, TT-308DSR offers a practical and reliable choice for your businesses aiming to increase productivity and product competitiveness.
