TingTing Woodworking Machinery Co., Ltd. is one of the leading manufacturers and suppliers of edge banding equipment in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy premium edge banding equipment from our factory. For price consultation, contact us.
Why This Edge Banding Equipment Fits Growing Factories
For manufacturers balancing output, finish quality, and operating cost, a compact automatic system can be a practical alternative to separate stand-alone stations. The TT 308DSA is built to keep the edge-finishing sequence organized in a small footprint, helping operators move from raw panel to a smooth finished edge with fewer handling steps.
Production focus: Its control layout is intended for everyday production: the touch screen centralizes settings, selectable conveyor speeds support different work rates, and automatic functions reduce unnecessary energy use between jobs. The result is an edge banding equipment solution suited to cabinet shops, panel-furniture plants, and expanding woodworking operations.
Integrated Processing Sequence
- Pre milling prepares the panel edge before tape application, supporting a more consistent bond and a cleaner visual result.
- A high efficiency gluing section applies adhesive, with a preheat function available for lower-temperature working conditions.

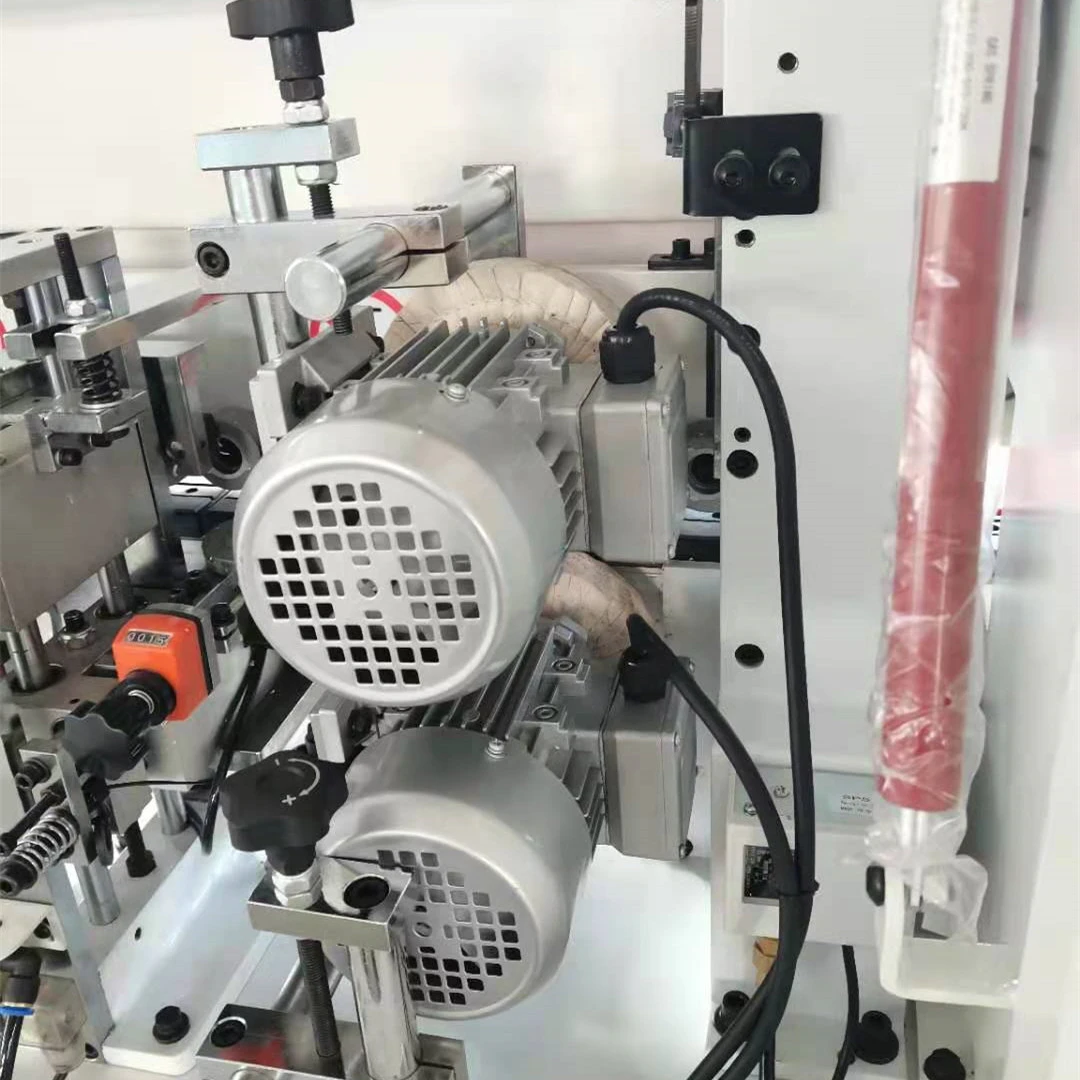

- End trimming and fine trimming remove excess tape and refine the panel profile after bonding.
- Corner rounding, scraping, and buffing complete the edge so the finished surface feels smooth and looks uniform.
- An optional cleaning unit can be positioned before pre milling or before scraping, depending on the production setup.
Operator Friendly Controls and Safeguards

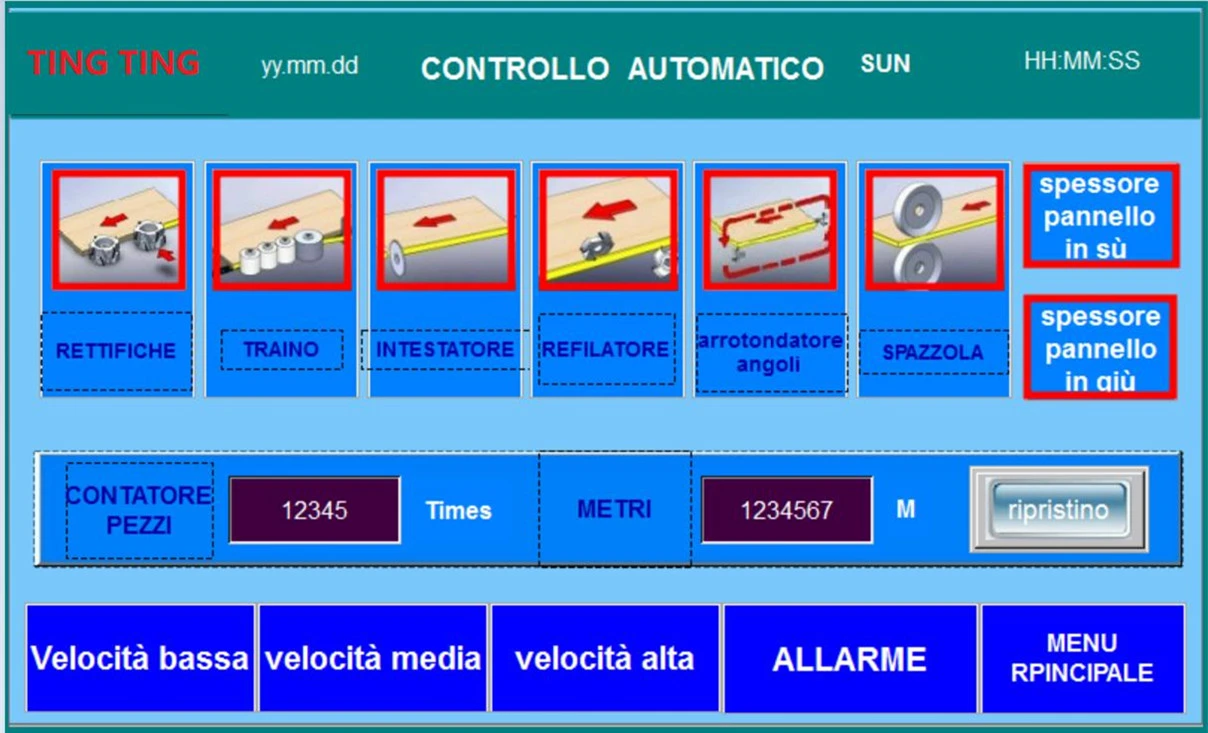

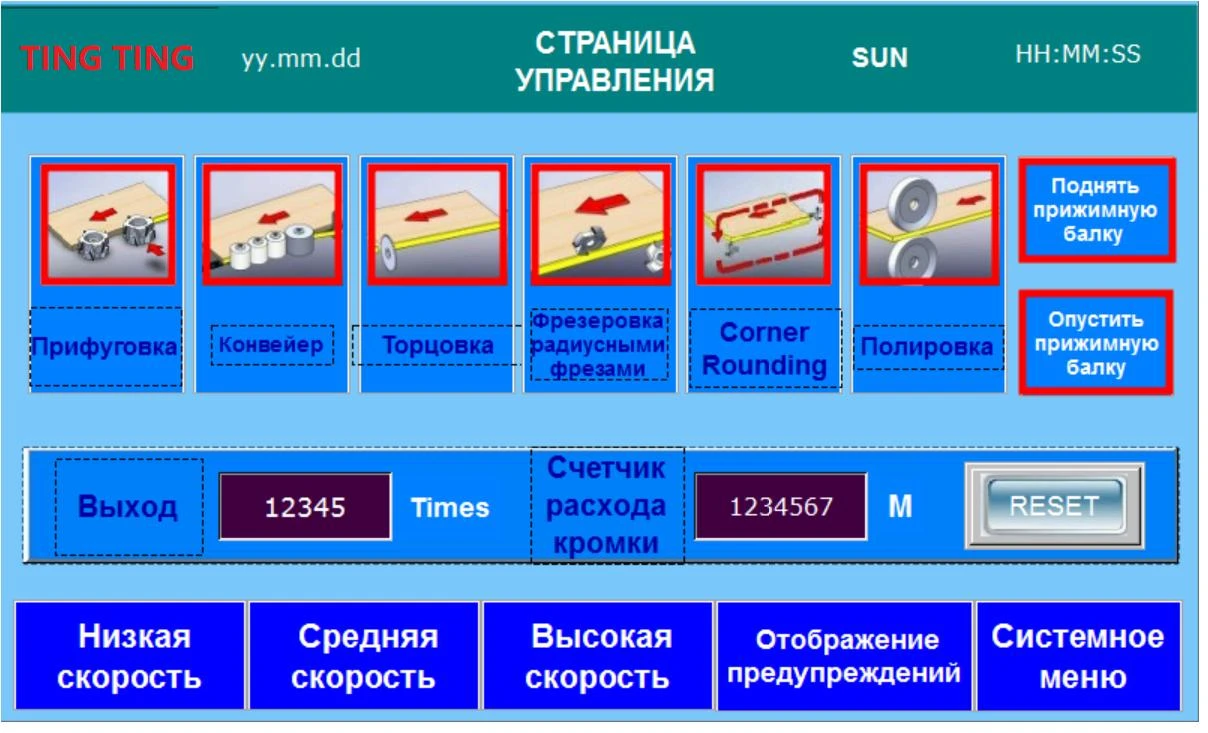

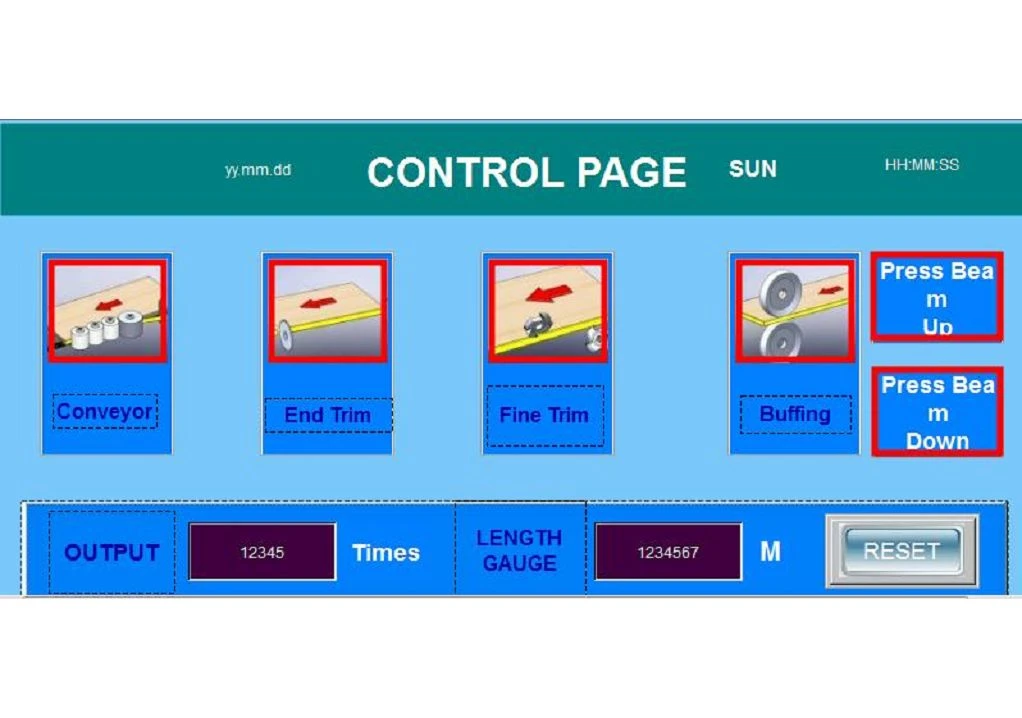

The machine uses a Delta touch screen to give operators a direct way to adjust parameters and monitor the process. A panel counter can calculate length and working time, while an emergency stop provides immediate shutdown when needed. Language options include English, Russian, Italian, Spanish, and others for teams operating in different markets.

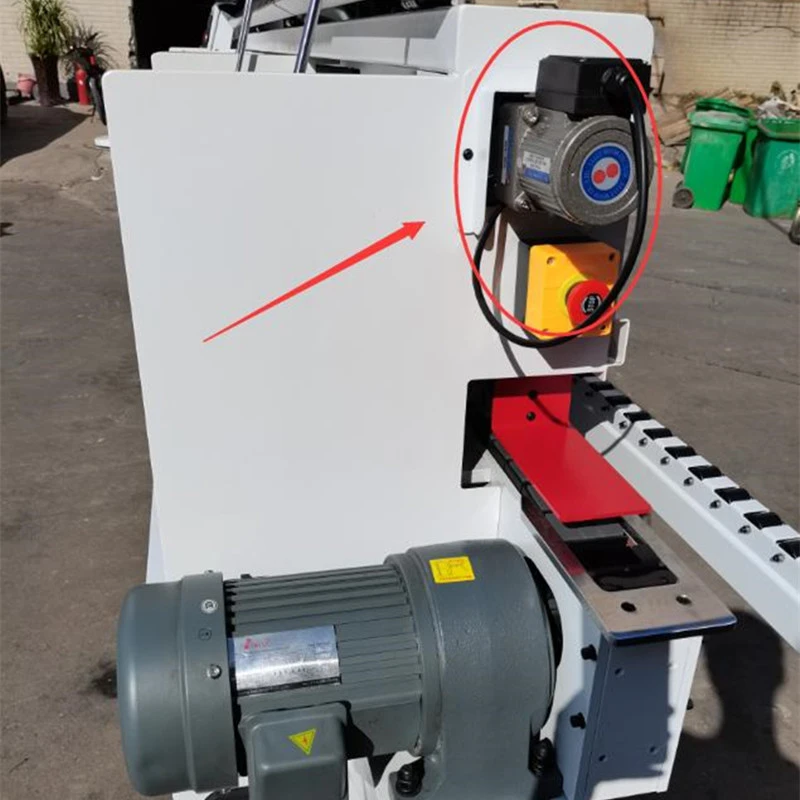

Operational benefit: When panel thickness is changed, the system supports automatic up and down adjustment. It also stops conveyor movement if a panel exceeds the specified thickness. Automatic standby and one-button wake-up functions help reduce idle energy use. These features make the edge banding equipment easier to integrate into repeatable production routines.
Technical Data
|
MODEL |
TT-308A |
|
Panel Length |
≥100 mm |
|
Panel width |
≥45 mm |
|
Panel Thickness |
10-45 mm |
|
Edge Thickness |
0.3 to 2 mm; 3 mm requires customized cutters |
|
Speed |
Three selectable speeds: 8, 12, or 16 m/min |
|
Voltage |
380 V, 50 Hz, three phase; optional configurations available |
| Pre Milling | Two 1.8 kW motors, 12,000 rpm, 200 Hz |
| End Trimming | Two 0.35 kW motors, 12,000 rpm, 200 Hz |
| Fine Trimming | Two 0.5 kW motors, 12,000 rpm, 200 Hz; tilt motor design |
| Machine Dimensions |
3880*575*1520mm |
| Packing Weight |
1000/950KG |
Details

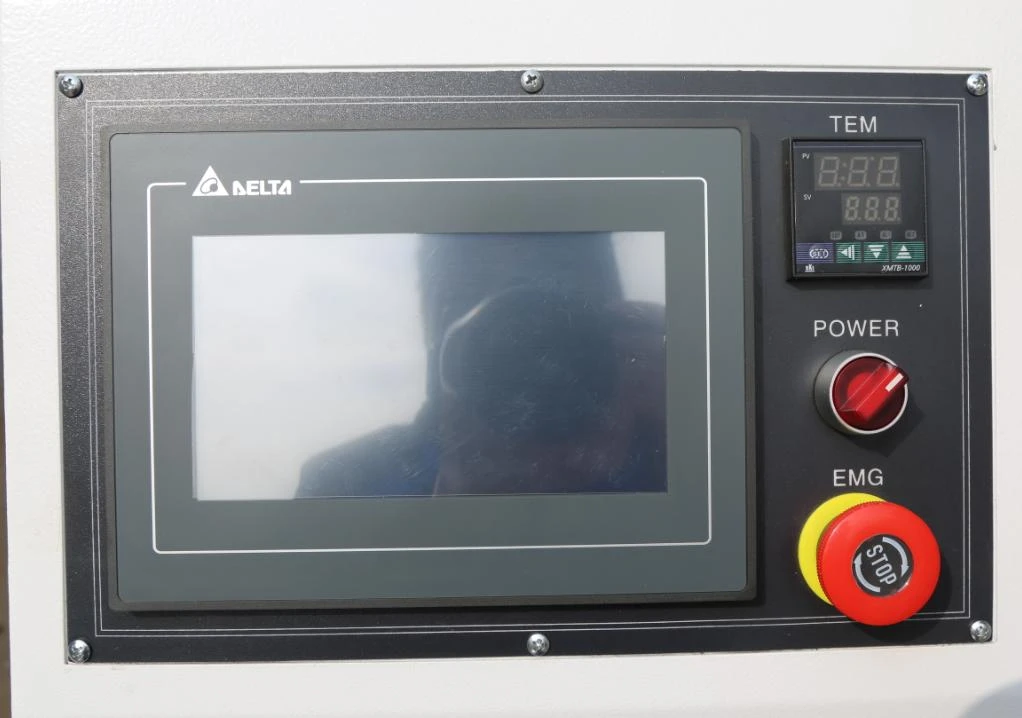

Touch Screen Controller
Support Certification and Delivery
TingTing Woodworking Machinery has worked in woodworking machinery manufacturing and export for more than 15 years. The company provides product support, replacement parts during the first year under its warranty terms, and continued technical and parts service after the warranty period. Its equipment line is presented as CE certified for applicable EU safety requirements.
Delivery note: For shipment, the machine can be protected with plastic film and supplied in a wooden case; a wooden pallet is optional. This packaging approach helps prepare the edge banding equipment for international transport and factory delivery.
Choose a Compact Edge Finishing Solution
The TT 308DSA brings the core finishing stages together for businesses that need dependable edge quality, a manageable machine footprint, and adjustable production speed. If your goal is to improve panel finishing while keeping the workflow simple, this automatic edge banding equipment offers a balanced configuration for professional woodworking production.
FAQ
1. What materials can this machine work on?
This machine is suitable for MDF, plywood, particle board, melamine board, PVC board, acrylic, and solid wood processing.
2. Do you provide OEM and ODM services?
TingTing Woodworking Machinery provides professional OEM and ODM services to customers worldwide. With an experienced team of engineers, advanced manufacturing technology, and a comprehensive production system, we can customize various woodworking equipment to meet your requirements.Whether appearance, your logo, functional configuration, voltage standards, or a complete production solution, our team can provide flexible and efficient support.
3.What certifications do you have?
All our machines comply with international standards and have passed CE certification.
4.Do you provide installation services?
Our experienced team provides clients with comprehensive, one-stop solutions. We offer prompt technical support, remote online services, spare parts supply, and customized services to ensure the stable operation of equipment and deliver a long-term, reliable user experience.
5.How long is the warranty?
We provide one year warranty service and lifetime technical Support.
6.What is the delivery time?
We have most products in stock; the lead time for custom-made machines varies depending on the specific machine.
