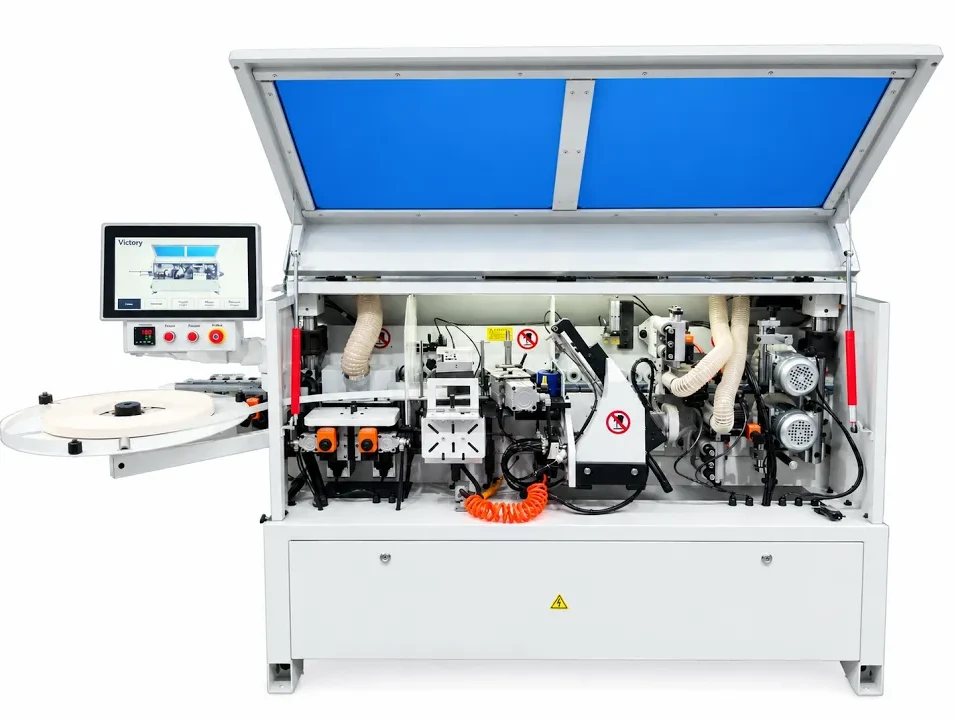

TingTing Woodworking Machinery Co., Ltd. is one of the leading manufacturers and suppliers of panel edge banding machine in China. As we have world-leading production equipment and strong manufacturing capabilities, we warmly welcome you to buy premium panel edge banding machine from our factory. For price consultation, contact us.
Technical Specifications
|
Model |
TT-306DBP |
|
Min.Panel Length |
120mm |
|
Min. Panel Width |
80mm |
|
Panel Thickness |
10-45mm |
|
Edge band Thickness |
0.4-2 mm |
|
Feeding Speed |
8 m/min |
|
In-put voltage |
380V Optional |
|
In-put frequency |
50Hz Optional |
|
Pre-milling motor |
2*1.1kw*12000rpm |
|
End Cutting motor |
0.37kw*12000rpm |
|
Fine Trimming motor |
2*0.35kw*12000rpm |
|
Total Power |
5.86kw |
|
Air Pressure |
0.5 Mpa |
|
Overall Dimension |
2450*600*1410mm |
|
Net Weight |
660kg |
Details

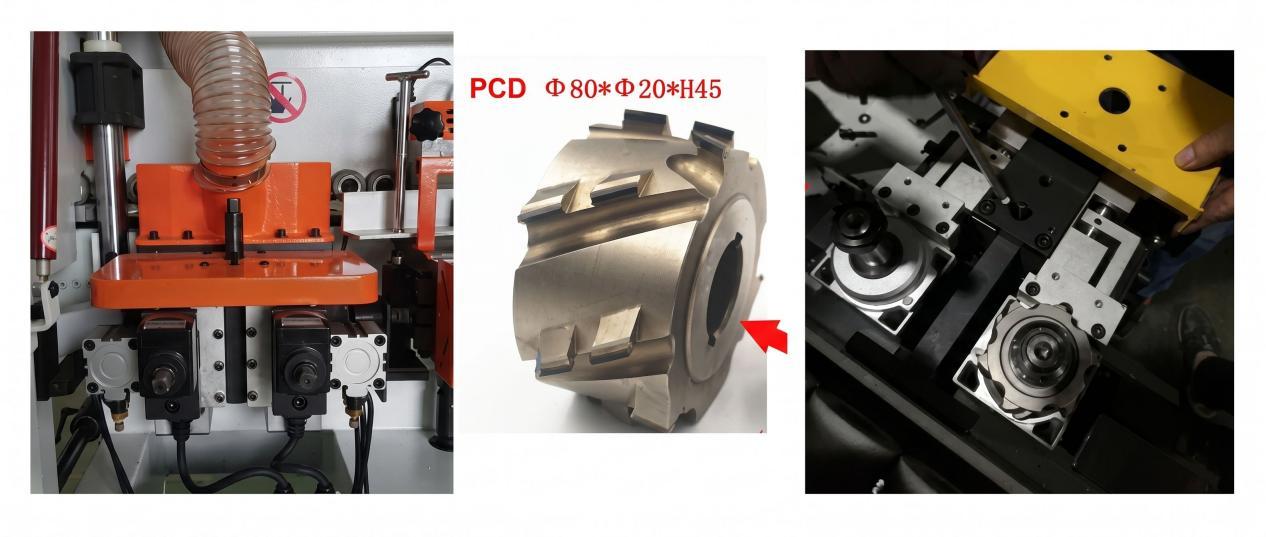

Pre-Milling Unit
Equipped with 12,000 rpm high-speed motor and PCD milling cutter, can produce cleaner board edges.

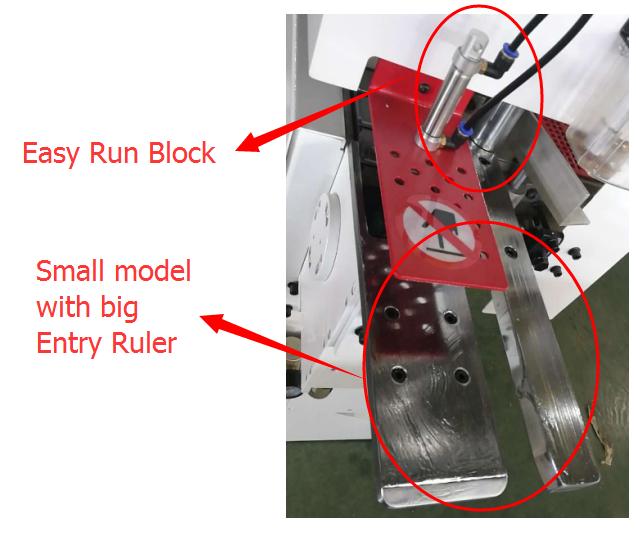

Entry Unit
The material-limiting cylinder can protect the end-trimming unit,and the wider infeed fence accommodates panels of varying widths.

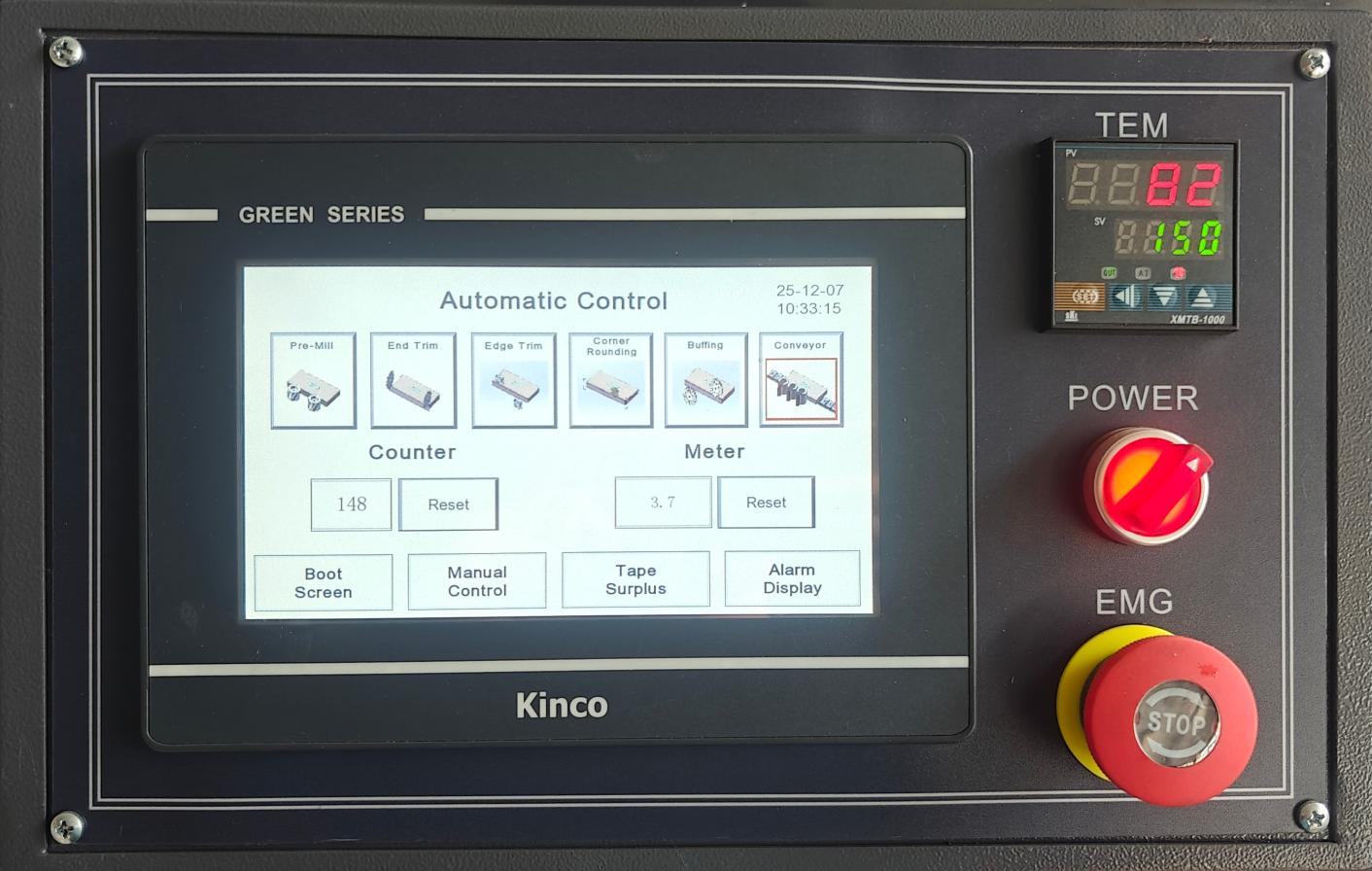

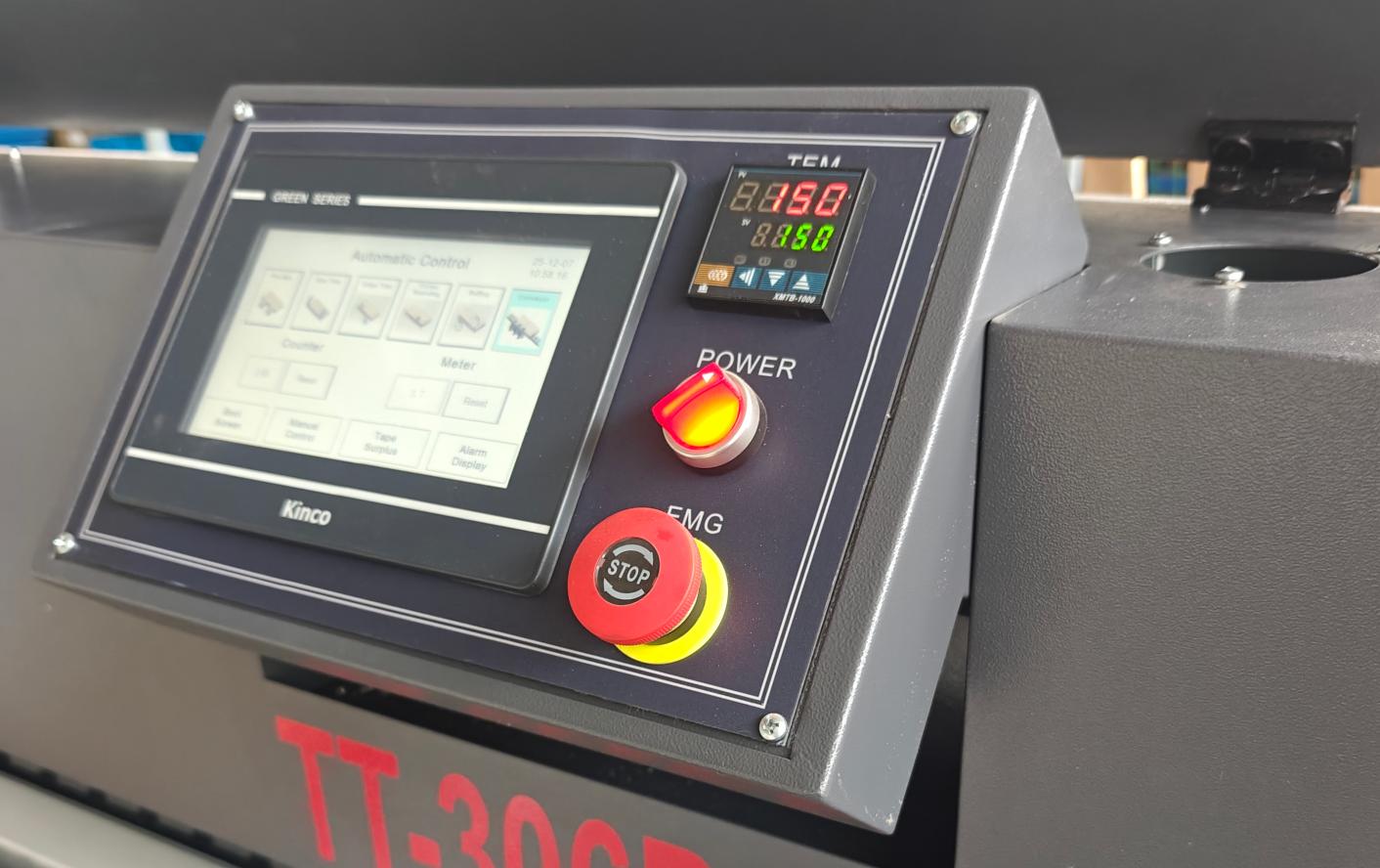

Control panel
High-definition touchscreen control panel featuring an operating interface specifically designed for edgebanders, ensuring smoother operation.
Easy Operate
Multilingual control panel and allows for language customization.

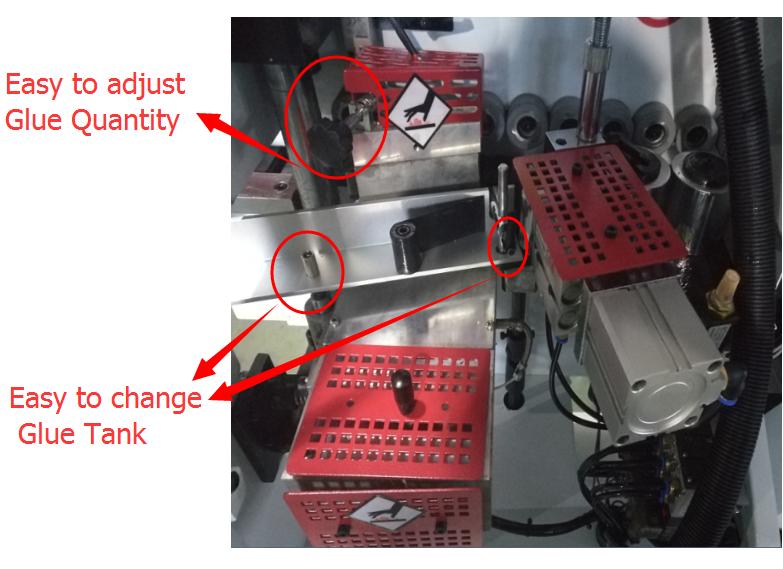

Gluing and Tape Cutting Unit
- Glue Tank very easy to change
- Special spiral design for glue tank

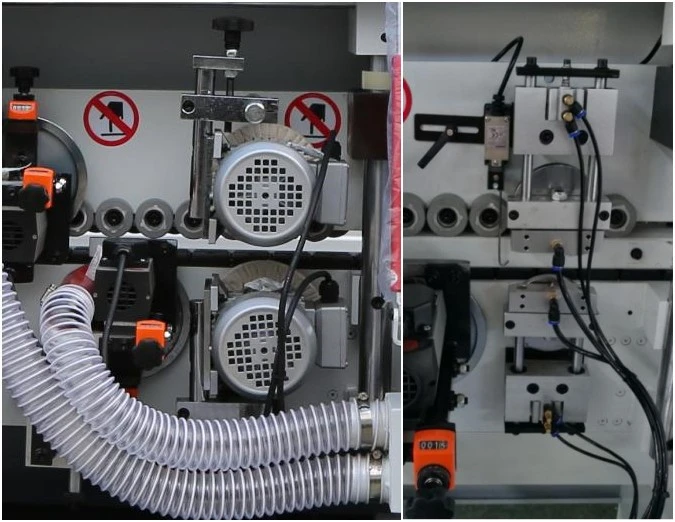

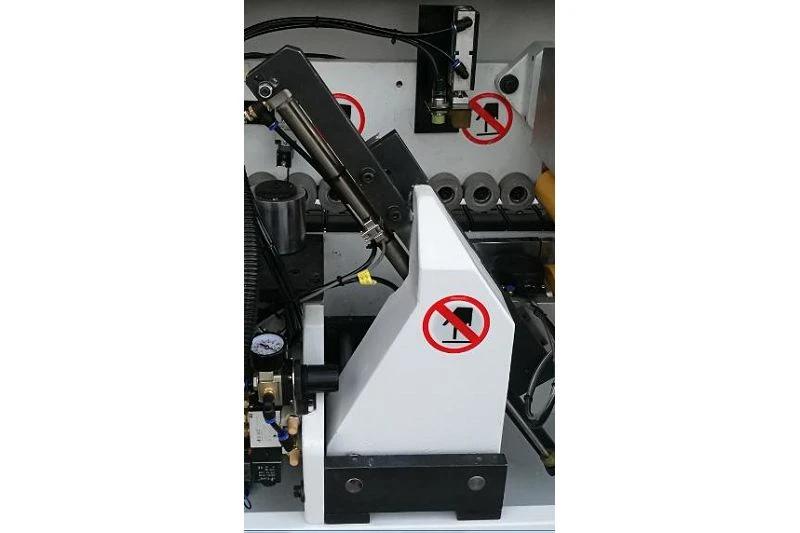

End Trimming Unit
12,000 rpm high-speed motor,heavy-duty end cutting bottomed base for greater operational stability.

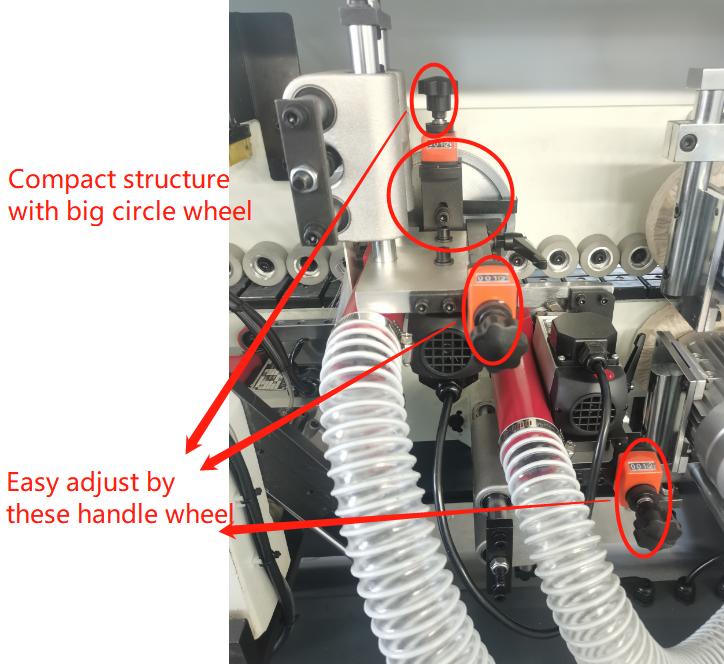

Fine Trimming Unit
- Two high speed motor,12000r/min
- With handle display,easy adjust
- Special design for dust collector
- Nesting functions (optional)
Buffing Unit&Flat Scrap Unit(Optional)
- Easy adjust structure
- Compact

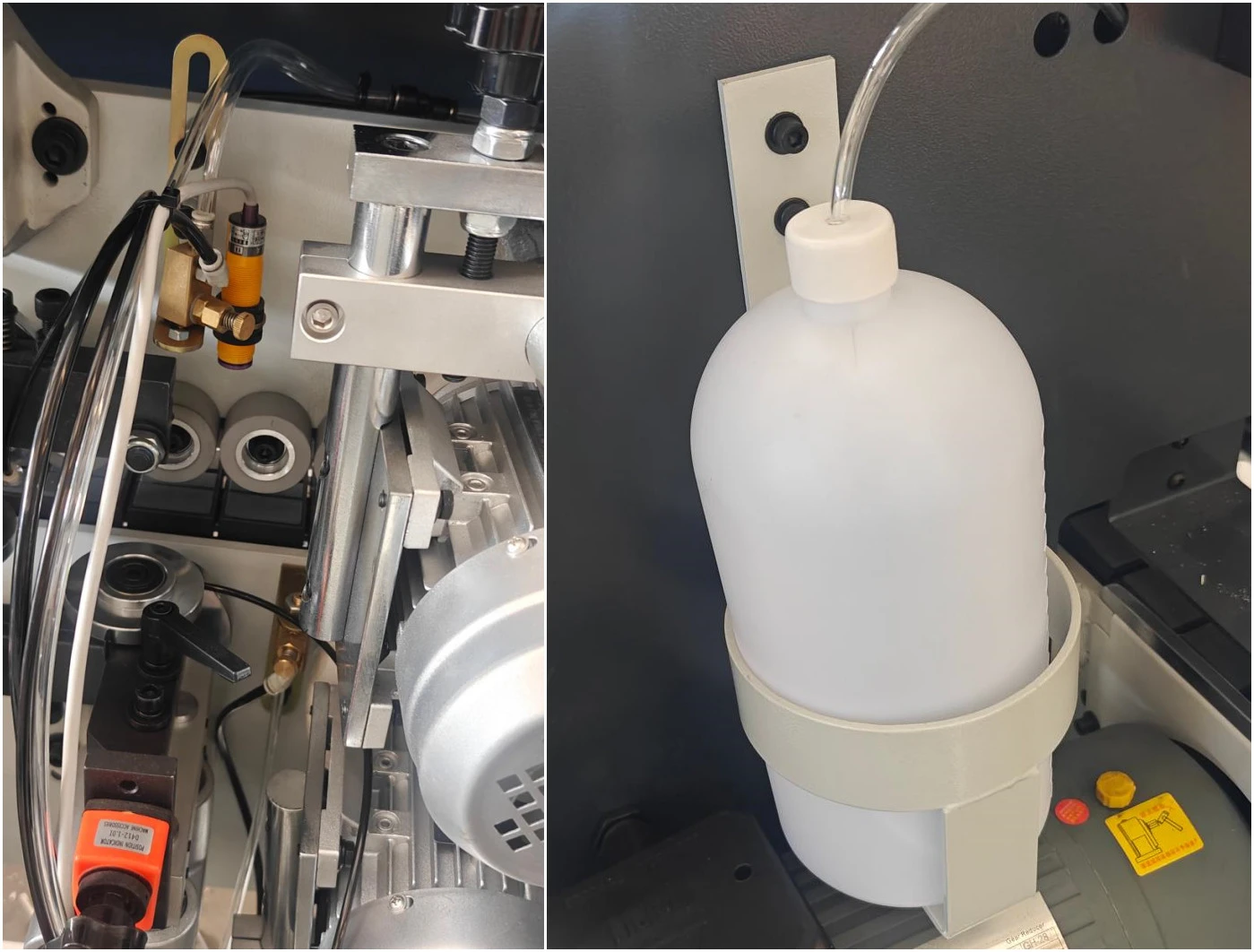

Cleaning Unit(Optional)
- Can add before Pre-milling
- Or before buffing

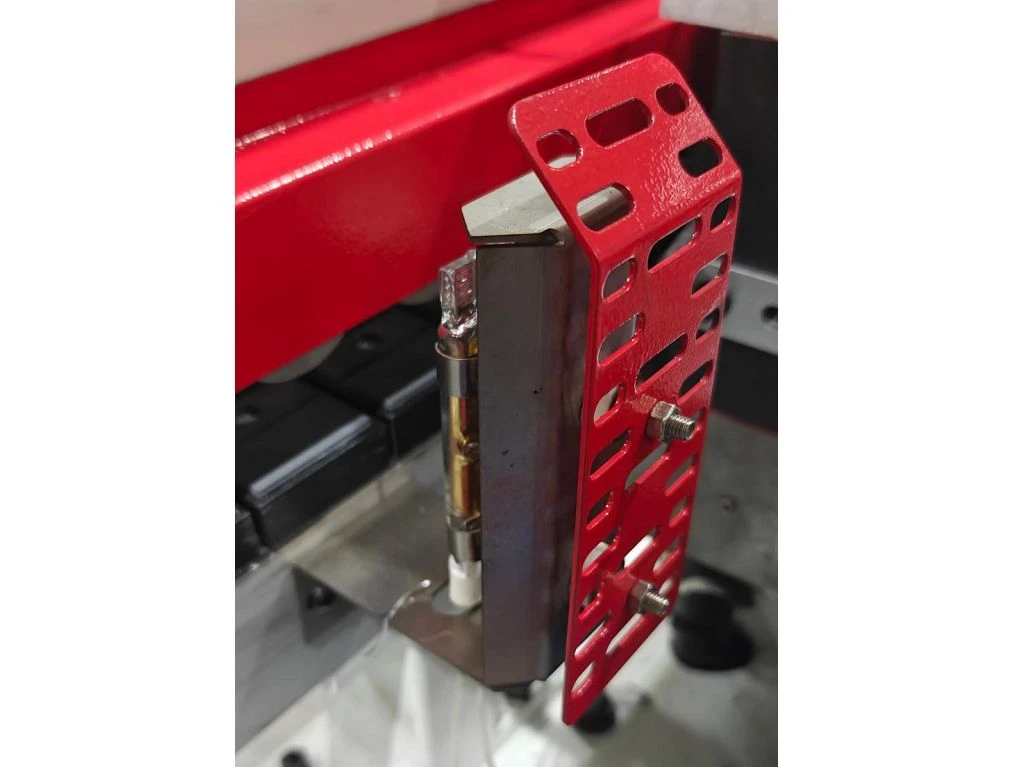

Pre-heating (optional)

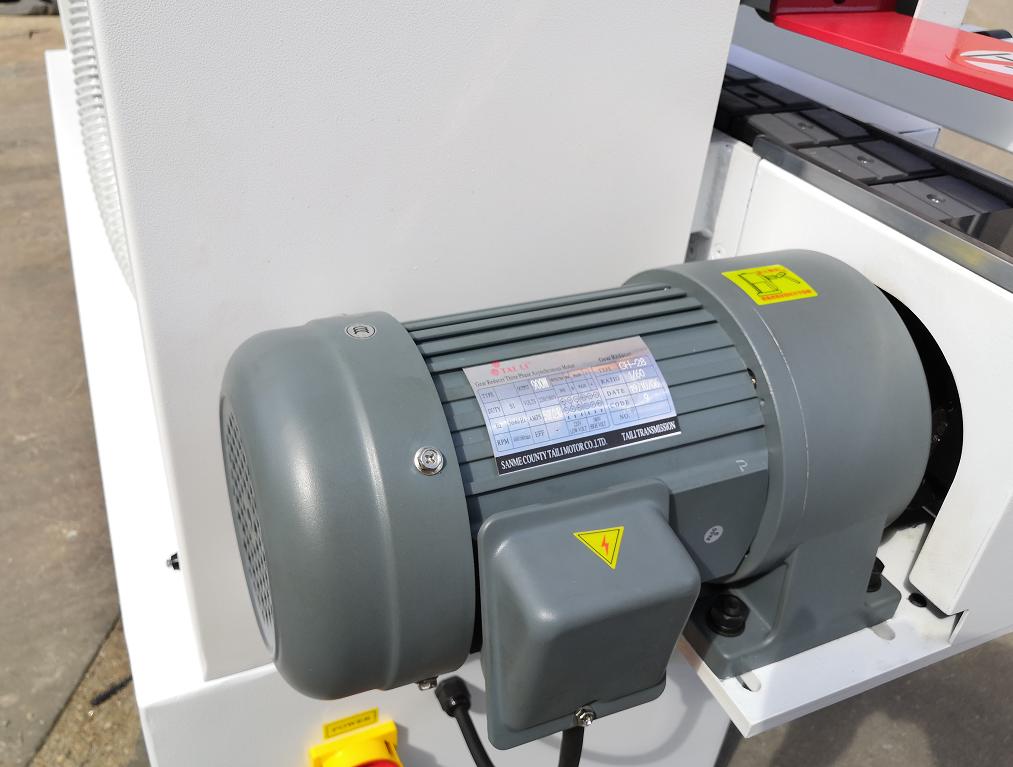

Gear Motor Reducer
Big machine Standard
Which can easily work 2400*1200mm Big panel
Brand Electrical and Pneumatic Accessories
LS brand PLC Shihlin brand inverter
Product Advantages
High Efficiency
Multiple edge processing procedures are integrated into one machine, reducing intermediate handling and improving production efficiency.
Consistent Quality
Automated processing helps maintain consistent edge banding and trimming quality during continuous production.
Professional Finish
The combination of trimming, scraping, and buffing units helps achieve smooth and attractive panel edges.
Reduced Manual Operation
Automatic feeding and processing reduce manual intervention and make the production process more streamlined.
Flexible Application
Suitable for furniture manufacturers working with different types of wood-based panels and edge banding materials.
Industrial Design
The machine is designed for continuous production environments and is suitable for professional woodworking factories.
Who Is This Machine For?
Custom Furniture Factory
For producing customized cabinets, wardrobes, TV cabinets, and other panel furniture.
Kitchen Cabinet Factory
For high-volume processing of cabinet panels and components.
Panel Furniture Manufacturer
For continuous edge banding operations in industrial furniture production.
Woodworking Workshop
For manufacturers looking to upgrade from manual or semi-automatic edge banding.
Furniture Production Line
For integration with panel cutting, drilling, CNC nesting, and other woodworking equipment.
CE Certification
TT-306DBP has obtained CE certification, demonstrating that the machine complies with European safety, health, and environmental protection standards. This certification reflects our commitment to product quality, operational safety, and international manufacturing standards.
Package
Each of our machines undergoes rigorous testing and professional packaging before shipment to ensure safe transport. We typically use sturdy wooden crates or reinforced steel frames to guarantee the machines are fully protected during sea and land transport. We also support various customized packaging solutions and container loading optimization services to meet your different needs.
TingTing Advantages
TingTing Woodworking Machinery specializes in the development and supply of professional woodworking machinery and complete solutions for panel furniture production. With a focus on reliable quality, precise processing, efficient production, and practical machine design, we provide a wide range of equipment including edge banding machines, CNC woodworking machines, drilling machines, and other panel processing solutions. We are committed to delivering stable performance, competitive solutions, responsive service, and customized support to customers worldwide. By continuously improving our technology, product quality, and service capabilities, TingTing Woodworking Machinery helps furniture manufacturers enhance production efficiency, improve processing quality, and build more efficient and reliable woodworking production lines.
Why Choose TT-306DBP

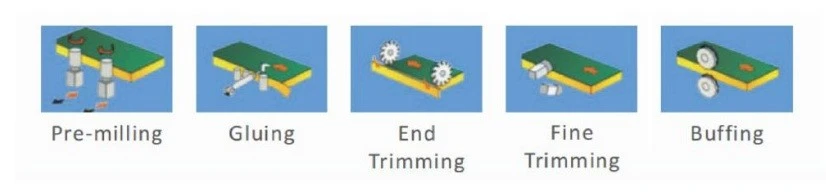

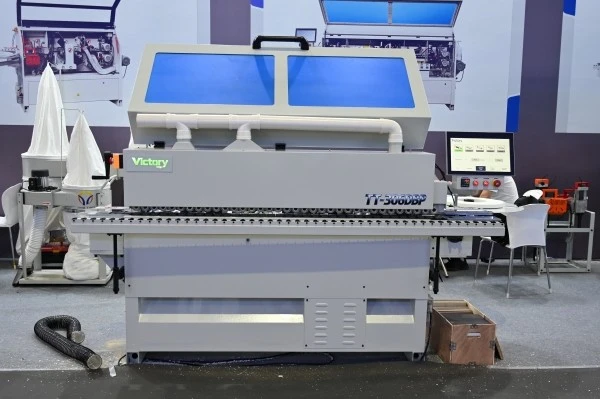

The TT-306DBP Panel Edge Banding Machine combines multiple edge processing procedures into a continuous production process. By reducing manual handling and integrating trimming and finishing functions, it helps furniture manufacturers improve production efficiency while maintaining consistent edge quality.
For businesses producing cabinets, wardrobes, kitchen furniture, office furniture, and other panel furniture, the TT-306DBP provides a practical solution for automated edge processing.
